1.Main features

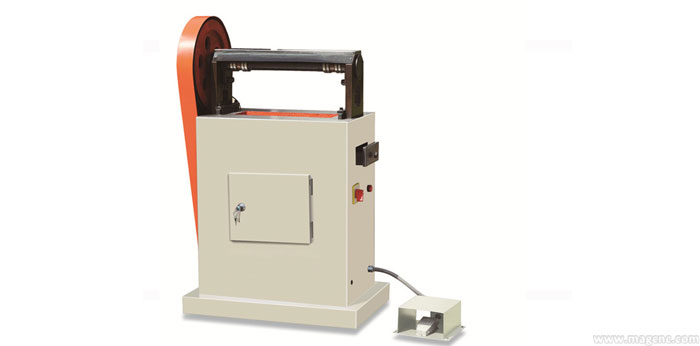

1).The pressing machine is necessary for assembling alu-alloy doors and windows, suitable for punching procedure of alu-alloy profiles.
2).Double-position rolling bending-axle bearing.
3).Every combination punching die equipped with the machine can achieve the whole punching process of one type profiles by changing different punching die, various profiles can be processed.
4).High working efficiency. The small volume ensure good safety.

2.Technical Parameters

Brand Name                                                 MAG
Model                                                            LYA-30
Power Supply                                               380V 50Hz or customers specifications
Input Power                                                 1.1KW
Rated pressure                                            30KN
Punching travel                                           17mm
Closing height                                              165mm
Die size                                                          495*200*165mm
Cutting profile surface roughness           Ra12.5μm
Over all dimension                                      700*450*1200mm
Weight                                                           220kg
