1.Main features

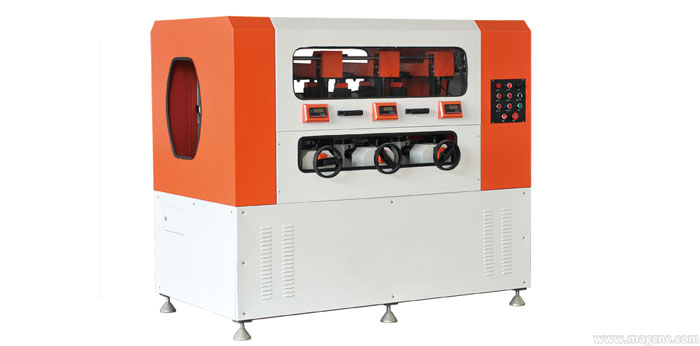

1). This aluminum profile rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make the end product, which is called bridge-cut-off aluminum alloy profile or thermal break aluminum profile. Hardened rollers are used to press the knurled profile and thermal barrier strip or plastic profile together, to make a composite profile that has great insulation effect.
2). Equipped with three groups of hardened rollers electrically controlled, available in changing profiles quickly with the Nylon rollers. Two-axis direction adjustments. .
3). Six rollers controlled by separate driving force guarantee stable rolling, higher speed, and higher efficiency.
4). Space between roller wheelings adjustable. Suitable for various sizes of thermal barrier strips.
5). Frequency converter with stepless speed regulation.
6). High-precision screw are used for driving.

2.Technical Parameters

Brand Name                                                     MAG
Model                                                                GRFH02
Power Supply                                                   380V 50Hz or customers specifications
Main motor power:                                        4Kw
Air pressure                                                      0.5-0.8M pa
Feeding speed                                                  0-90m/min (stepless adjusting)
Rolling disc diameter                                     210mm
Coaxial rolling discs distance                        0-80mm
Front and back rolling discs distance          0-100mm
Max. profile processing section                   250*250mm (W*H)
Profile support dimension (L*W*H)            5000*450*1100mm
Size: (width × high × long)                             1300mm × 1100mm × 1700mm
Weight:                                                             2000Kg
