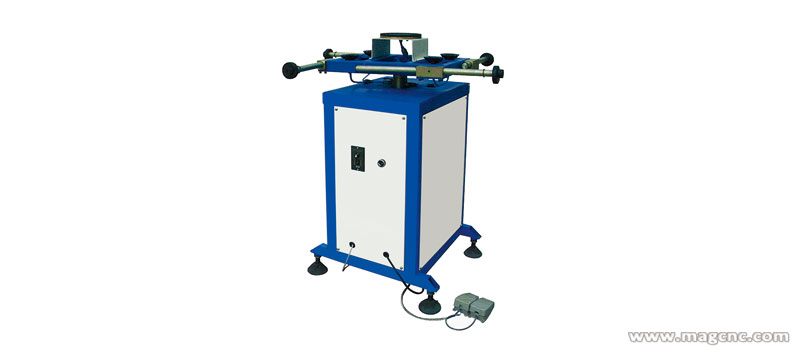

1.Main features:

1) The supporting arm can be adjusted based on glass dimension.

2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.

3) Operators are capable to operate the footswitch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.

4) The machine is simple in operating procedures and high in working efficiency.

2.Technical Parameters

Bramd Name: MAG Machine

Power supply: 220V/50Hz
Total power: 0. 12Kw
Glass Dimension Max. 2000x2000mm

Min. glass 175mm*175mm
Rotation Speed 4r/min
Motor Power 120W
Weight   260KG
