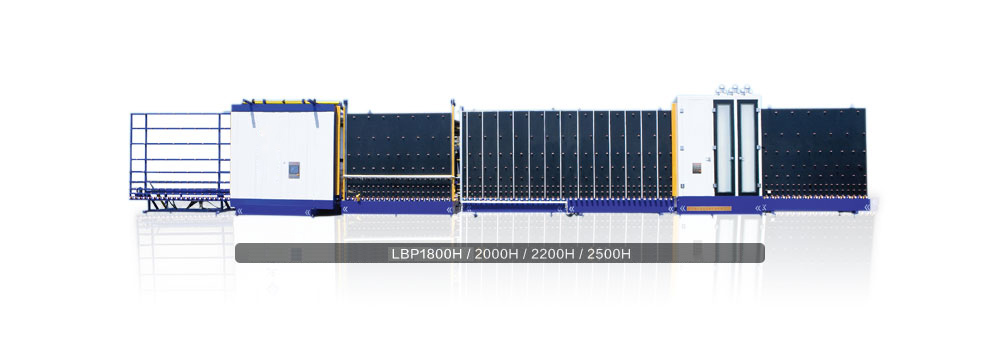

LBP1800/2000/2500 type Automatic plate pressure insulating glass production line

Product Details

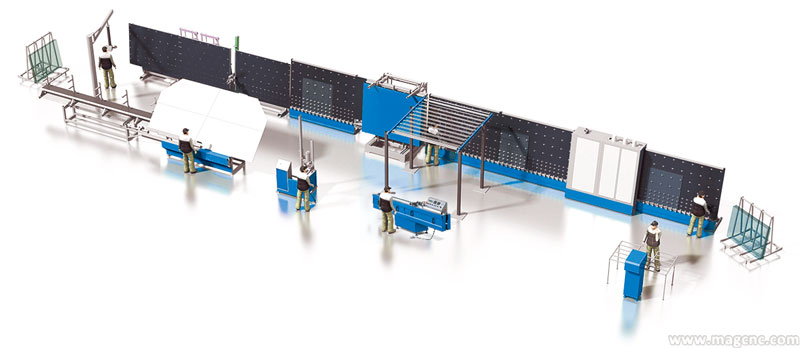

This production line adopts the most advanced IG manufacture technology and craft in the world. It is composed of input conveyor, washing and drying machine, inspecting conveyor, aluminum frame position, assembly machine, large distance press machine and tilting table. The line can automatically process same edge glass and double layers insulating glass. Automatic out-panel assembly and press in press machine makes it work with high efficiency.

-Automatically distinguish the coating side of coated glass and Low-E glass.

-PLC control system with touch screen operation.

-Machine work and fault dynamic display.

-Inside assembly lines can produce standard double layer insulating glass and three layers insulating glass.(Optional)

-Insulating glass press design - gear and rack synchronous device driven by hydraulic station.

-Stainless steel body prevents corrosion and guarantees semi-permanent life

- Heater device for preventing freeze

- Apply separately low and high of transfer speed for enhancing productivity

- Uniform pressure capacity regardless with alteration of I/G thickness.(within ±0.3mm)

- Fast cleaning, low-noise

- Triple Glass available



Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
