Main features:

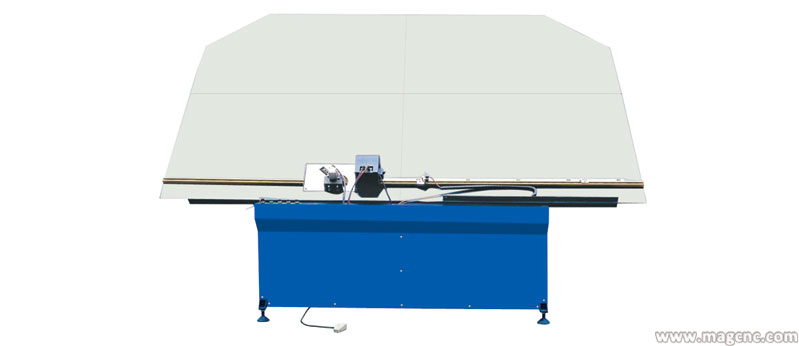

1.  It is special equipment for spacer bending.

2. The machine adopt PLC controller, can complete the whole procedure automatically after calculation and manually putting spacer into the machine..

3. The machine feature easy operation, reliable positioning, steady running, large processing range and high efficiency.

Technical Parameters

Power supply                 AC380V/50HZ or customized

Air pressure                    0.5~0.8Mpa

Min spacer frame size 280*280mm

Max spacer frame size     2000*2000mm

Bending angle        90°

Width of alu spacer    5.5 8.5 11.5 15.5 23.5(mm)

Overall dimension             3400*1600*2300mm

Production tolerances     ±0.3mm

Weight                                400KG
