Main features

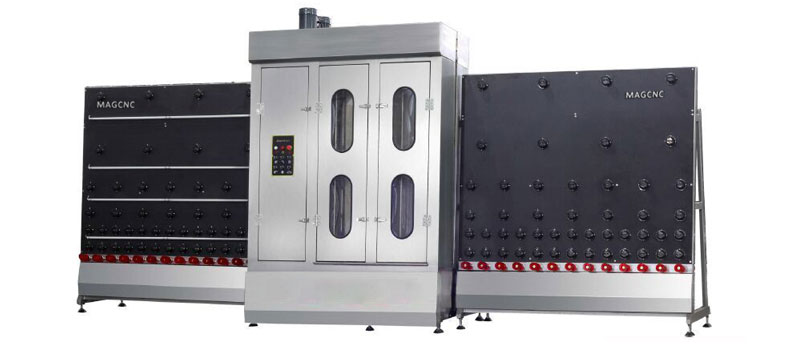

1. Vertical glass washing and drying machine is cleaning for flat glass with 3 pairs of brushes and air knife to drying.

2. It has 3 pairs of glass washing soft brushes for coated glass and LOW-E glass.

3. Drying section adopts rubber roller to scrape of the water,and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.

Technical Parameters

Model  BX1600V BX1800V BX2000V BX2200V BX2500V

Power voltage 380V 50Hz(220V, 60Hz) or customers specification

Max glass size 1600*2000mm 1800*2500mm 2000*2500mm 2200*3000 mm 2500*3500 mm

Min glass size  500*300(mm) 500*300(mm) 500*300(mm) 500*300(mm) 500*300(mm)

Transmission speed 1.2-10 m/min 1.2-10 m/min 1.2-10 m/min 1.2-10 m/min 1.2-10 m/min

Thickness of washing glass 3-19mm 3-19mm 3-19mm 3-19mm 3-19mm

Power rate       8.43Kw 12 Kw 19KW 25KW 38KW

Washing speed 0~8m/min 0~8m/min 0~8m/min 0~8m/min 0~8m/min

Max.Working Speed 25m/min 25m/min 25m/min 25m/min 25m/min

Max.InsulatingGlassThickness 40mm 40mm 40mm 40mm 40mm

Overall dimmension (mm) 6100*2100*2650mm 6800*2300*2850mm 8000x2100x3150mm 8500*2300*3350 9200*2600*3650

Weight 1500kg 1800kg 2450 KGS 2950 KGS 3350 KGS
