Main Features

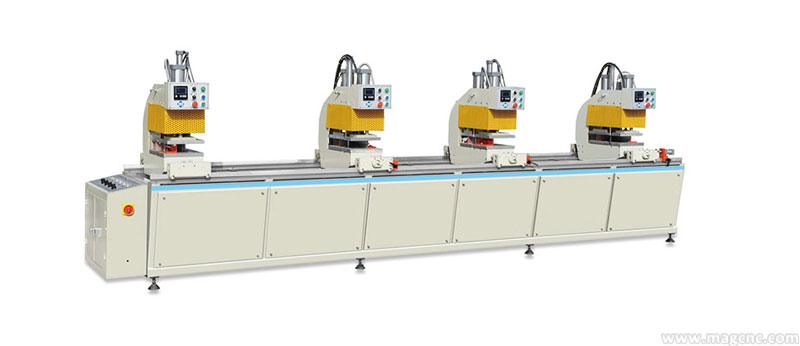

1). Window machine is used for PVC door-window welding.

2). PLC controls the welding action program, high reliability.

3). Machine heads can work separately or jointly.

4). Free angle welding of right machine head.

5). Parameters can be set to meet various profiles' processing requirements.

6). High welding precision.

7). Imported PLC and other main electric components.

8). Good welding corner appearance.

9). Widely window type application as follows

10).Optional model: SHJ2-120, SHJ3-120) for different machinery head. Owning different machinery welding capacity.

Parameter

Brand Name

MAG

Model

HTW4-120

Air Pressure

0.5~0.8MPa

Air consumption

200L/min

Input Voltage

380V 50~60Hz 3 phases or As Customer need

Input Power

4.5Kw

Welding profile height

20-100mm/120mm

Welding Width

Max 120mm

Welding range

400-4500mm

Overall size

5400×1100×1700mm

Weight

2000kg
