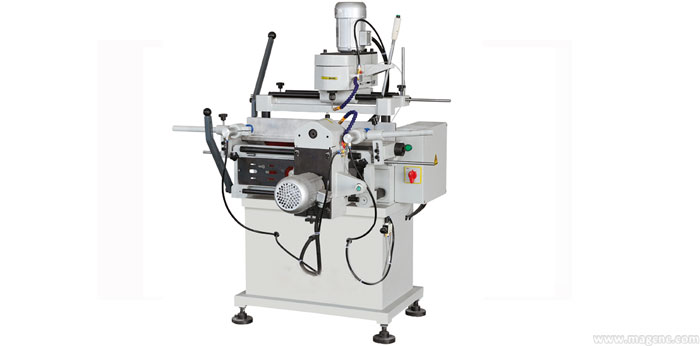

1.Main features

1).Used for processing all kinds of holes of the aluminum and PVC profiles.
2). Vertical and horizontal direction can be adjusted .
3). Changeable template for different copy routing.

4). It has features of compact structures and small volume, the air pressure drives the clamping.

2.Technical Parameters

Brand Name                                                  MAG
Model                                                             LXF2-290*100
Power Supply                                                380V 50Hz or customers specifications
Input power                                                  2*0.75KW
Air Pressure                                                   0.6-0.8Mpa
Processing hole size error                          ±0.2mm
Processing deviation from straightness  ±0.1mm
Milling cutter diameter                              Φ5, Φ8
Copy routing range                                       290*100mm
Over all dimension                                      1000*1150*1600mm
Weight                                                           280Kg
