Main Features

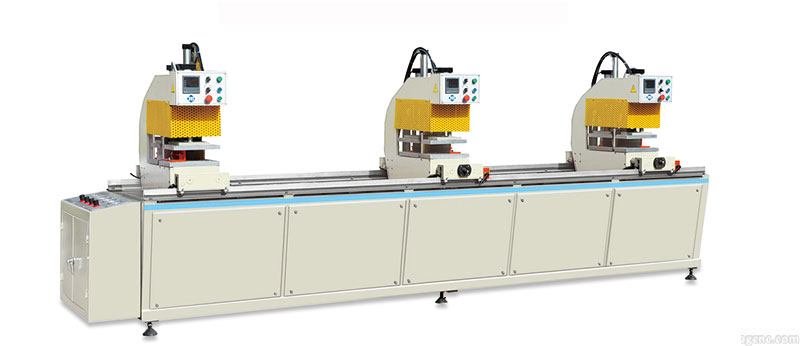

1). This machine is used for PVC door-window welding.

2). Imported PLC and other main electric components control the welding action program, high reliability.

3). Each machine head can work separately or jointly.

4). Solid machinery base and structure ensure long life service with high dimension accuracy.

5). Parameters can be set to meet various profiles' processing requirements.

6). Most popular machinery type with 2mm welding

7). Various angles welding between 30 to 180 degree is available on last machine head.

8). Special profile fixture is easy to change, for high corner strength,good welding corner appearance.

9). Profile fixture ordered separately can meet various height profiles' processing requirement.

10). Widely window type application as follows

Parameter

Brand Name

MAG

Model

HTW3-120

Air Pressure

0.5~0.8MPa

Air consumption

150L/min

Input Voltage

380V 50~60Hz 3 phases or As Customer need

Input Power

3.5Kw

Welding profile height

20-100mm/120mm

Welding Width

Max 120mm

Welding range

400-3500mm

Overall size

4400×1100×1700mm

Weight

1500kg

Main accessory

PLC

Taiwan Delta

Solenoid valve

STNC

Cylinder

Huatong

Motor

Anhui Sanyang

Air Filter Device

AIRTEC

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider
