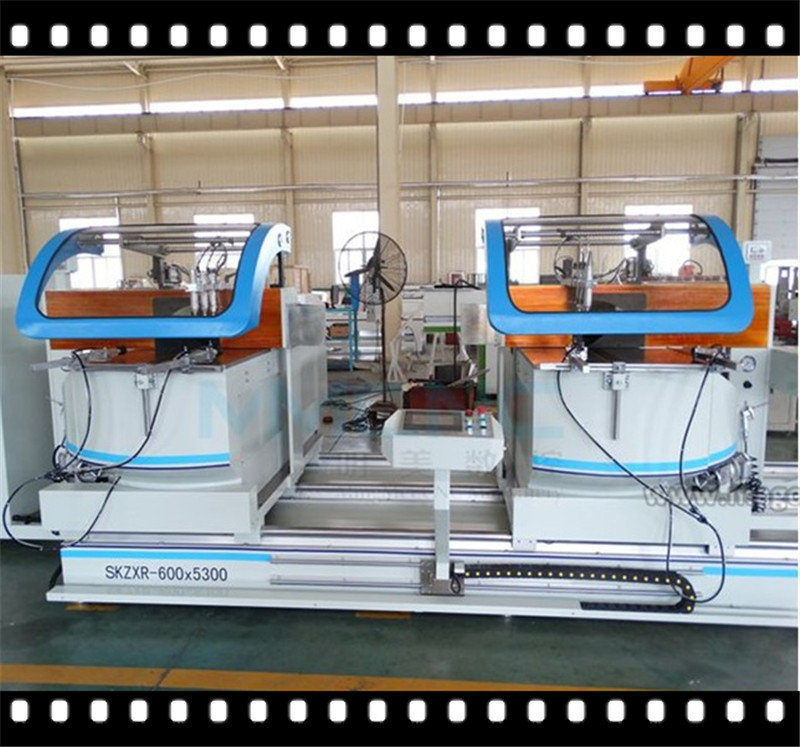

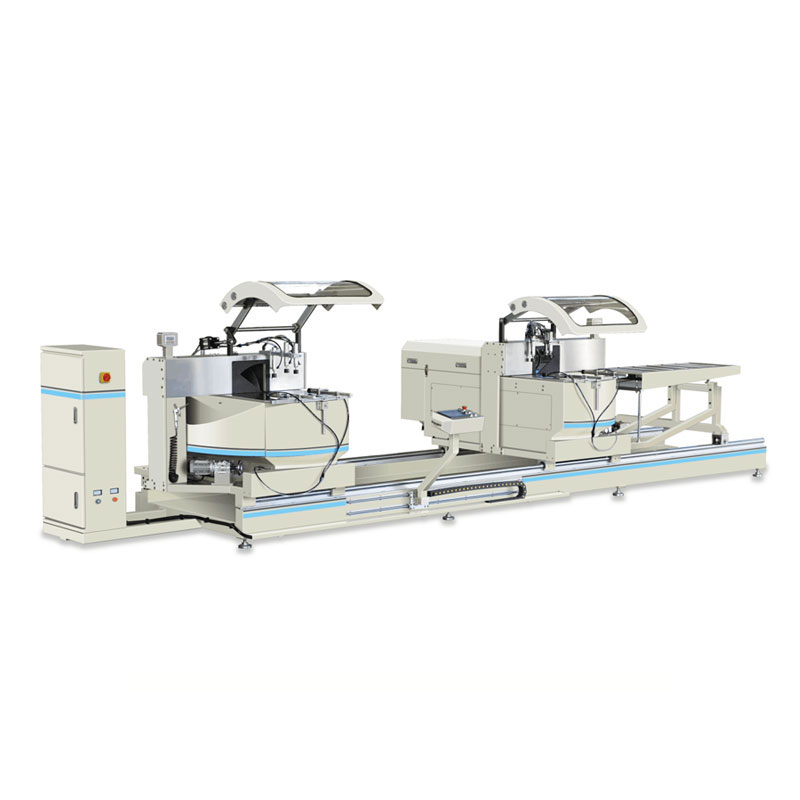

1. It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material-discharging. Adopt servo motor to drive reducer,implement saw blade rotating positioning at any angle between 45°and 90°.
2. It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.
3. It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.
4. Adopt servo motor to drive reducer, implement saw blade rotating positioning at any anglebetween 45°and 90°.
5. Two cutting heads can swing positioning at any angle between 45°and 90°.
6. Two cutting heads not only can work separately, moveable head feeding material continuously,fixed cutting head cuttingcircularly; but also can work simultaneously, can cut needed length and profile two ends angle at one time.
7. Hard alloy teeth cutting blade, high cutting speed,high produce efficiency,high process accuracy.
|
Parameter |
|
|
Brand Name |
MAG |
|
Model |
SKZXR-600x5300 |
|
Power Supply |
3Phase four wire 380V 50Hz (220V/60Hz) |
|
Cutting head motor |
Power 2X3 KW |
|
Rotate speed |
2800r/min |
|
Saw blade swing angle servo motor power |
2X0.9KW |
|
Cutting head horizontal move servo motor power |
1.5kW |
|
Cutting head turn angle motor power |
0.18x2kW |
|
Working air pressure |
0.5-0.8MPa |
|
Saw cutting length |
max 5300mm |
|
Saw cutting width x height |
max 500x180mm 90° |
|
Saw cutting height |
Max210mm 90° |
|
Saw cutting angle blade |
45° ~ 90°arbitrary angle |
|
Cutting head |
45° ~ 90°arbitrary angle |
|
Cutting feed speed stepless speed regulation |
stepless speed regulation 0~3m/min |
|
Saw Blade Specification |
φ600mmx4.4mmxφ30mm Z=120 |
|
Overall Dimension |
7500mmx2450mmx1700mm |
|
Weight about |
5100kg |
|
Main accessory |
|
|
Control system |
|
|
Solenoid valve |
Airtec/STNC |
|
Cylinder |
HT |
|
Motor |
YYY (Best Chinese Motor Brand) |
|
Air Filter Device |
Airtec |
|
Electrical Button and Switcher |
Schneider |
|
AC Contactor and Circuit Breaker |
Schneider |
|
Approach Switch |
Autonics (Korean) |
|
Guide rail |
|
|
Saw blade |
JF (Japan) |
|
DRO |
|
|
Standard accessory |
|
|
Saw Blade |
2pcs |
|
Air Gun |
1pc |
|
Complete tooling |
1set |
|
Certificate |
1pc |
|
Operation Manual |
1pc |
If you have any questions, please contact us immediately
