1.Main features

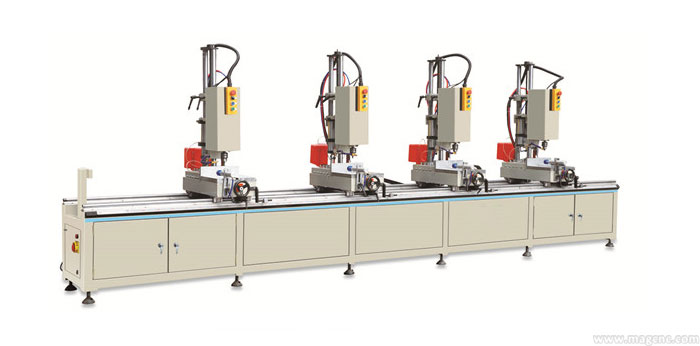

1). Special for drilling of aluminum
window, curtain wall profiles. It is suitable for long profile process and mass
production.
2). Max process cross section is
250*250mm, Max process length is 5000mm.
3)..Pneumatic-hydraulic damp feeding
system.
4). Imported PLC control system with
steady capability.
2.Technical Parameters
|
Brand Name |
MAG |
|
Model |
LZZ4-13 |
|
Power Supply |
380V 50Hz or customers specifications |
|
Main motor Power |
4x1.1KW |
|
Working voltage |
380V 50Hz |
|
Operating air pressure |
0.5-0.8Mpa |
|
Max/Min distance between each group holes |
5000mm/300mm |
|
Max processing profile section size |
250*250mm |
|
Drilling head feeding travel |
125mm |
|
Work table size L x W |
300*200mm |
|
Size |
5500*1100*1800mm |
|
Weight |
1300KG |
